2652 Duplex Piston Pump
IEQ is an OEM supplier of the GASO 2652 Pump. Let the friendly customer service staff at IEQ Industries help you find the GASO Pump and Parts you need.
Download your copy of the 2652 Specs. GASO 2652 Duplex Pump

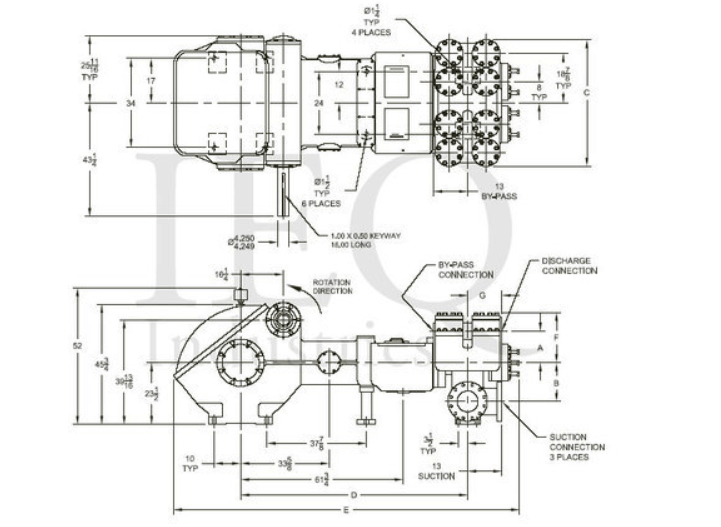

Want to make this drawing interactive?
Specifications
Pump Size:
maximum piston size x stroke length, in.(mm)
7-1/4 x 12 (184.2 x 304.8)
Rated BPH (kW) at 85 RPM (Crankshaft speed):
258 (192)
Rated piston load, pounds (kg)
22100(10025)
Maximum discharge pressure: psi (kPa)
1125 (7757)
Pinion Gear Ratio
5.05:1
Pinion shaft extension:
Diameter, in.(mm): 4.250 (108.0)
Length, in.(mm): 18.750 (476.3)
Keyway width x depth, in.(mm):
1 x 1/2 (25.4 x 12.7)
Maximum recommended sheave diameter, in.(mm):
63 (1600)
For larger sheave diameters: Contact Factory
Oil Capacity, gallons (L)
25.0 (94.6)
Weight, pump only on wood shipping skids, pounds (kg):
15500 (7031)
Standard Materials for Fluid End Bodies:
Cast Steel
Performance Chart
GASO 2652
| English Units | 25 RPM | 40 RPM | 55 RPM | 70 RPM | 85 RPM | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Piston Dia. In. | Piston Area Sq. In. | BPD per RPM | GPM per RPM | Max. Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM |
| 4 | 12.5664 | 78.384 | 2.2862 | 1125 | 1960 | 57.2 | 3136 | 91.4 | 4312 | 125.7 | 5487 | 160 | 6663 | 194.3 |
| 4.5 | 15.9043 | 102.096 | 2.9778 | 1125 | 2553 | 74.4 | 4084 | 119.1 | 5616 | 163.8 | 7147 | 208.4 | 8679 | 253.1 |
| 5 | 19.6349 | 128.712 | 3.7541 | 1125 | 3218 | 93.9 | 5149 | 150.2 | 7080 | 206.5 | 9010 | 262.8 | 10941 | 319.1 |
| 5.5 | 23.7583 | 158.064 | 4.6102 | 930 | 3952 | 115.3 | 6323 | 184.4 | 8694 | 253.6 | 11065 | 322.7 | 13436 | 391.9 |
| 6 | 28.2743 | 190.296 | 5.5503 | 782 | 4758 | 138.8 | 7612 | 222 | 10467 | 305.3 | 13321 | 388.5 | 16176 | 471.8 |
| 6.5 | 33.183 | 225.12 | 6.566 | 666 | 5628 | 164.2 | 9005 | 262.6 | 12382 | 361.1 | 15759 | 459.6 | 19136 | 558.1 |
| 7 | 38.4845 | 262.968 | 7.6699 | 574 | 6575 | 191.7 | 10519 | 306.8 | 14464 | 421.8 | 18408 | 536.9 | 22353 | 651.9 |
| 7.25 | 41.2825 | 283.272 | 8.2621 | 535 | 7082 | 206.6 | 11331 | 330.5 | 15580 | 454.4 | 19830 | 578.3 | 24079 | 702.3 |
| Brake Horsepower required | 76 | 121 | 167 | 213 | 258 |
GASO 2652
| Metric Units | 25 RPM | 40 RPM | 55 RPM | 70 RPM | 85 RPM | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Piston Dia. mm | Piston Area cm2 | M3/Hr per RPM | L/Sec. per RPM | Max. Press. kPa | M3/Hr | L/Sec. | M3/Hr | L/Sec. | M3/Hr | L/Sec. | M3/Hr | L/Sec. | M3/Hr | L/Sec. |
| 102 | 81.073 | 0.5192 | 0.1442 | 7757 | 13 | 3.6 | 20.8 | 5.8 | 28.6 | 7.9 | 36.3 | 10.1 | 44.1 | 12.3 |
| 114 | 102.608 | 0.6763 | 0.1879 | 7757 | 16.9 | 4.7 | 27.1 | 7.5 | 37.2 | 10.3 | 47.3 | 13.2 | 57.5 | 16 |
| 127 | 126.677 | 0.8526 | 0.2368 | 7757 | 21.3 | 5.9 | 34.1 | 9.5 | 46.9 | 13 | 59.7 | 16.6 | 72.5 | 20.1 |
| 140 | 153.279 | 1.047 | 0.2909 | 6414 | 26.2 | 7.3 | 41.9 | 11.6 | 57.6 | 16 | 73.3 | 20.4 | 89 | 24.7 |
| 152 | 182.415 | 1.2605 | 0.3502 | 5389 | 31.5 | 8.8 | 50.4 | 14 | 69.3 | 19.3 | 88.2 | 24.5 | 107.1 | 29.8 |
| 165 | 214.084 | 1.4911 | 0.4142 | 4592 | 37.3 | 10.4 | 59.6 | 16.6 | 82 | 22.8 | 104.4 | 29 | 126.7 | 35.2 |
| 178 | 248.286 | 1.7418 | 0.4839 | 3959 | 43.5 | 12.1 | 69.7 | 19.4 | 95.8 | 26.6 | 121.9 | 33.9 | 148.1 | 41.1 |
| 184 | 266.338 | 1.8763 | 0.5213 | 3691 | 46.9 | 13 | 75.1 | 20.9 | 103.2 | 28.7 | 131.3 | 36.5 | 159.5 | 44.3 |
| Kilowatts Required | 57 | 91 | 125 | 158 | 192 |
Operating below 54 RPM? An auxiliary lubrication system is required.
