GASO T140 (133T-4) Triplex Plunger Pump
IEQ is an OEM supplier of the GASO T140 (133T-4) Pump. Let the friendly customer service staff at IEQ Industries help you find the GASO Pump and Parts you need.
Download your copy of the T140 (133T-4) Specs:

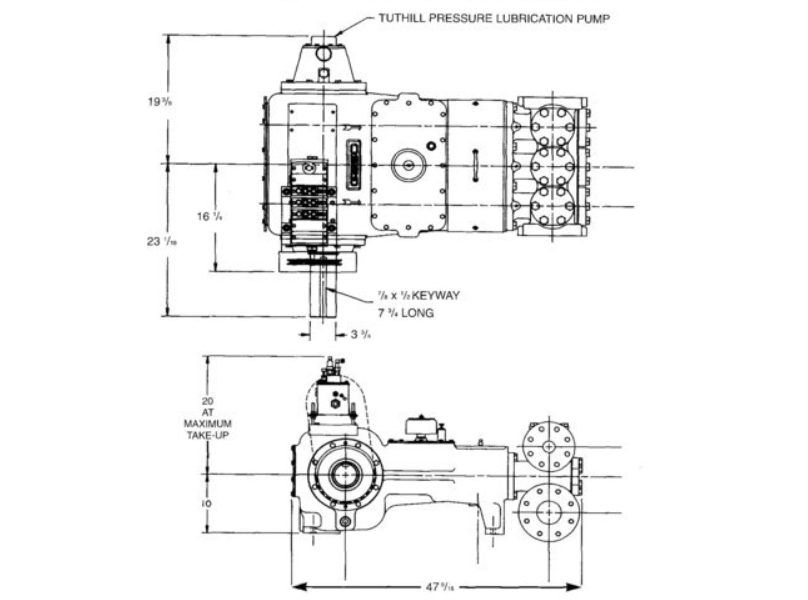

Want to make this drawing interactive?
Specifications
Pump Size:
maximum plunger size x stroke length, in.(mm)
3.375 x 4.500 (85.7 x 114.3)
Rated BPH (kW) at 400 RPM
133 (99)
Rated plunger load, pounds (kg)
8800 (3992)
Maximum discharge pressure: psi (kPa)
“L” model: 1440 (9929)
“M” model: 3600 (24821)
“H” model: 6000 (41369)
Crankshaft extension:
Diameter, in.(mm): 3.750 (95.25)
Length, in.(mm): 9.84 (249.9)
Keyway width x depth, in.(mm):
7/8 x 1/2 (22.225 x 12.7)
Maximum recommended sheave diameter, in.(mm):
53 (1346.2)
For larger sizes: Contact Factory
Accessory gear reduction unit:
3.00:1, 3.12:1, 3.23:1, 3.36:1, 3.49:1
3.62:1, 3.78:1, 3.94:1, 4.11:1, 4.29:1,
4.48:1, 4.69:1, 4.93:1, 5.17:1
Oil Capacity, gallons (L)
Crankcase: 6 (22.71)
Gear Reducer varies with ratio:
1.25 to 1.50 (4.73 to 5.68)
Weight, pump only on wood shipping skids, pounds (kg):
“L” model: 1650 (748)
“M” model: 1650 (748)
“H” model: 1650 (748)
Standard Materials for Fluid End Bodies:
“L” model
Cast Nickel-Aluminum-Bronze
Cast Duplex Stainless Steel
Forged/Plate Carbon Steel
“M” model
Cast Nickel-Aluminum-Bronze
Cast Duplex Stainless Steel
Forged/Plate Carbon Steel
“H” model
Forged Carbon Steel
Duplex Stainless Steel
Pinion shaft extension,
if gear reducer is supplied, in.(mm)
For belt or chain drive: Contact Factory
For direct drive: Diameter, in.(mm): 2.000 (50.8)
Length, in.(mm): 4.25 (108.0)
Keyway width x depth, in.(mm):
1/2 x 1/4 (12.70 x 6.35)
Performance Chart
GASO T140 (133T-4)
| PUMP | English Units | 100 RPM | 150 RPM | 250 RPM | 300 RPM | 350 RPM | 400 RPM | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plunger Dia. In. | Plunger Area Sq. In. | BPD per RPM | GPM per RPM | Max. Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
| 133T-4L (T140-4) | 3.375 | 8.9462 | 17.9255 | 0.5228 | 984 | 1793 | 52.3 | 2689 | 78.4 | 4482 | 130.7 | 5378 | 156.8 | 6274 | 183 | 7171 | 209.1 |
| 3.25 | 8.2958 | 16.6223 | 0.4848 | 1061 | 1663 | 48.5 | 2494 | 72.7 | 4156 | 121.2 | 4987 | 145.4 | 5818 | 169.7 | 6649 | 193.9 | |
| 3.125 | 7.6699 | 15.3682 | 0.4482 | 1147 | 1537 | 44.8 | 2306 | 67.2 | 3843 | 112.1 | 4611 | 134.5 | 5379 | 156.9 | 6148 | 179.3 | |
| 3 | 7.0686 | 14.1634 | 0.4131 | 1245 | 1417 | 41.3 | 2125 | 62 | 3541 | 103.3 | 4250 | 123.9 | 4958 | 144.6 | 5666 | 165.2 | |
| 2.875 | 6.4918 | 13.0077 | 0.3794 | 1356 | 1301 | 37.9 | 1952 | 56.9 | 3252 | 94.8 | 3903 | 113.8 | 4553 | 132.8 | 5204 | 151.8 | |
| 2.75 | 5.9396 | 11.9012 | 0.3471 | 1440 | 1191 | 34.7 | 1786 | 52.1 | 2976 | 86.8 | 3571 | 104.1 | 4166 | 121.5 | 4761 | 138.8 | |
| 2.625 | 5.4119 | 10.8438 | 0.3163 | 1440 | 1085 | 31.6 | 1627 | 47.4 | 2711 | 79.1 | 3254 | 94.9 | 3796 | 110.7 | 4338 | 126.5 | |
| 133T-4M (T140-3) | 2.5 | 4.9087 | 9.8357 | 0.2869 | 1793 | 984 | 28.7 | 1476 | 43 | 2459 | 71.7 | 2951 | 86.1 | 3443 | 100.4 | 3935 | 114.7 |
| 2.375 | 4.4301 | 8.8767 | 0.2589 | 1986 | 888 | 25.9 | 1332 | 38.8 | 2220 | 64.7 | 2664 | 77.7 | 3107 | 90.6 | 3551 | 103.6 | |
| 2.25 | 3.9761 | 7.9669 | 0.2324 | 2213 | 797 | 23.2 | 1196 | 34.9 | 1992 | 58.1 | 2391 | 69.7 | 2789 | 81.3 | 3187 | 92.9 | |
| 2.125 | 3.5466 | 7.1063 | 0.2073 | 2481 | 711 | 20.7 | 1066 | 31.1 | 1777 | 51.8 | 2132 | 62.2 | 2488 | 72.5 | 2843 | 82.9 | |
| 2 | 3.1416 | 6.2948 | 0.1836 | 2801 | 630 | 18.4 | 945 | 27.5 | 1574 | 45.9 | 1889 | 55.1 | 2204 | 64.3 | 2518 | 73.4 | |
| 1.875 | 2.7612 | 5.5326 | 0.1614 | 3187 | 554 | 16.1 | 830 | 24.2 | 1384 | 40.3 | 1660 | 48.4 | 1937 | 56.5 | 2214 | 64.5 | |
| 1.75 | 2.4053 | 4.8195 | 0.1406 | 3600 | 482 | 14.1 | 723 | 21.1 | 1205 | 35.1 | 1446 | 42.2 | 1687 | 49.2 | 1928 | 56.2 | |
| 101T-4H (T100-2) | 1.625 | 2.0739 | 4.1556 | 0.1212 | 4243 | 416 | 12.1 | 624 | 18.2 | 1039 | 30.3 | 1247 | 36.4 | 1455 | 42.4 | 1663 | 48.5 |
| 1.5 | 1.7671 | 3.5408 | 0.1033 | 4980 | 355 | 10.3 | 532 | 15.5 | 886 | 25.8 | 1063 | 31 | 1240 | 36.1 | 1417 | 41.3 | |
| 1.375 | 1.4849 | 2.9753 | 0.0868 | 5926 | 298 | 8.7 | 447 | 13 | 744 | 21.7 | 893 | 26 | 1042 | 30.4 | 1191 | 34.7 | |
| 1.25 | 1.2272 | 2.4589 | 0.0717 | 6000 | 246 | 7.2 | 369 | 10.8 | 615 | 17.9 | 738 | 21.5 | 861 | 25.1 | 984 | 28.7 | |
| Brake Horsepower required | 34 | 51 | 84 | 100 | 117 | 133 |
GASO T140 (133T-4)
| PUMP | Metric Units | 100 RPM | 150 RPM | 250 RPM | 300 RPM | 350 RPM | 400 RPM | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plunger Dia. mm | Plunger Area cm2 | M3/Hr per RPM | L/Sec. per RPM | Max. Press. kPa | M3/Hr | L/Sec. | M3/Hr | L/Sec. | M3/Hr | L/Sec. | M3/Hr | L/Sec. | M3/Hr | L/Sec. | M3/Hr | L/Sec. | |
| 133T-4L (T140-4) | 86 | 57.717 | 0.1187 | 0.033 | 6782 | 11.9 | 3.3 | 17.8 | 4.9 | 29.7 | 8.2 | 35.6 | 9.9 | 41.6 | 11.5 | 47.5 | 13.2 |
| 83 | 53.521 | 0.1101 | 0.0306 | 7314 | 11 | 3.1 | 16.5 | 4.6 | 27.5 | 7.6 | 33 | 9.2 | 38.5 | 10.7 | 44 | 12.2 | |
| 79 | 49.483 | 0.1018 | 0.0283 | 7911 | 10.2 | 2.8 | 15.3 | 4.2 | 25.4 | 7.1 | 30.5 | 8.5 | 35.6 | 9.9 | 40.7 | 11.3 | |
| 76 | 45.604 | 0.0938 | 0.0261 | 8584 | 9.4 | 2.6 | 14.1 | 3.9 | 23.5 | 6.5 | 28.1 | 7.8 | 32.8 | 9.1 | 37.5 | 10.4 | |
| 73 | 41.883 | 0.0862 | 0.0239 | 9346 | 8.6 | 2.4 | 12.9 | 3.6 | 21.5 | 6 | 25.8 | 7.2 | 30.2 | 8.4 | 34.5 | 9.6 | |
| 70 | 38.32 | 0.0788 | 0.0219 | 9929 | 7.9 | 2.2 | 11.8 | 3.3 | 19.7 | 5.5 | 23.6 | 6.6 | 27.6 | 7.7 | 31.5 | 8.8 | |
| 67 | 34.915 | 0.0718 | 0.02 | 9929 | 7.2 | 2 | 10.8 | 3 | 18 | 5 | 21.5 | 6 | 25.1 | 7 | 28.7 | 8 | |
| 133T-4M (T140-3) | 64 | 31.669 | 0.0651 | 0.0181 | 12360 | 6.5 | 1.8 | 9.8 | 2.7 | 16.3 | 4.5 | 19.5 | 5.4 | 22.8 | 6.3 | 26.1 | 7.2 |
| 60 | 28.581 | 0.0588 | 0.0163 | 13696 | 5.9 | 1.6 | 8.8 | 2.5 | 14.7 | 4.1 | 17.6 | 4.9 | 20.6 | 5.7 | 23.5 | 6.5 | |
| 57 | 25.652 | 0.0528 | 0.0147 | 15260 | 5.3 | 1.5 | 7.9 | 2.2 | 13.2 | 3.7 | 15.8 | 4.4 | 18.5 | 5.1 | 21.1 | 5.9 | |
| 54 | 22.881 | 0.0471 | 0.0131 | 17108 | 4.7 | 1.3 | 7.1 | 2 | 11.8 | 3.3 | 14.1 | 3.9 | 16.5 | 4.6 | 18.8 | 5.2 | |
| 51 | 20.268 | 0.0417 | 0.0116 | 19313 | 4.2 | 1.2 | 6.3 | 1.7 | 10.4 | 2.9 | 12.5 | 3.5 | 14.6 | 4.1 | 16.7 | 4.6 | |
| 48 | 17.814 | 0.0366 | 0.0102 | 21974 | 3.7 | 1 | 5.5 | 1.5 | 9.2 | 2.5 | 11 | 3.1 | 12.8 | 3.6 | 14.7 | 4.1 | |
| 44 | 15.518 | 0.0319 | 0.0089 | 24821 | 3.2 | 0.9 | 4.8 | 1.3 | 8 | 2.2 | 9.6 | 2.7 | 11.2 | 3.1 | 12.8 | 3.5 | |
| 133T-4H (T140-2) | 41 | 13.38 | 0.0275 | 0.0076 | 29256 | 2.8 | 0.8 | 4.1 | 1.1 | 6.9 | 1.9 | 8.3 | 2.3 | 9.6 | 2.7 | 11 | 3.1 |
| 38 | 11.401 | 0.0235 | 0.0065 | 34335 | 2.3 | 0.7 | 3.5 | 1 | 5.9 | 1.6 | 7 | 2 | 8.2 | 2.3 | 9.4 | 2.6 | |
| 35 | 9.58 | 0.0197 | 0.0055 | 40861 | 2 | 0.5 | 3 | 0.8 | 4.9 | 1.4 | 5.9 | 1.6 | 6.9 | 1.9 | 7.9 | 2.2 | |
| 32 | 7.917 | 0.0163 | 0.0045 | 41369 | 1.6 | 0.5 | 2.4 | 0.7 | 4.1 | 1.1 | 4.9 | 1.4 | 5.7 | 1.6 | 6.5 | 1.8 | |
| Kilowatts required | 25 | 38 | 63 | 75 | 87 | 99 |
For operation below 150 RPM, an auxiliary lubrication system is required.
