Wheatley T225 (32T-2) Triplex Plunger Pump

IEQ is an OEM supplier of the Wheatley T225 (32T-2) Pump. Let the friendly customer service staff at IEQ Industries help you find the GASO Pump and Parts you need.

Download your copy of the T225 (32-T) Specs.
Wheatley T225 (32T-2) Plunger Pump

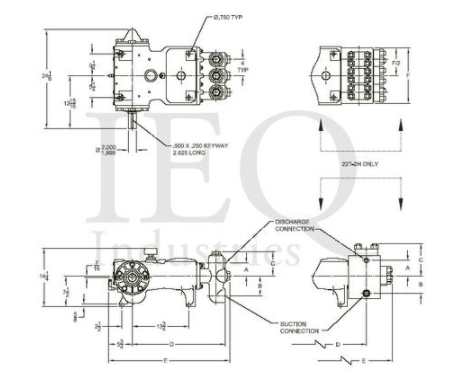

Want to make this drawing interactive?

Get access to our Interactive Parts List for this pump and others.

Click here to find out how!

PSI

4600 PSI (max)

BPD

1464 BPD (max)

GPM

42.7 GPM (max)

THE PARTS YOU NEED THE SERVICE YOU DESERVE

IEQ Industries is a global provider of Wheatley Gaso Pumps & Parts.

Get Started

Specifications

Pump Size:
- maximum plunger size x stroke length, in.(mm)
  - 2.000 x 2.250 (50.8 x 57.15)
Rated BPH (kW) at 465 RPM
- 22 (17)
Rated plunger load, pounds (kg)
- 3600 (1633)
Maximum discharge pressure: psi (kPa)
- “L” model: 2037 (14046)
- “M” model: 2565 (17688)
- “H” model: 4600 (31716)
Crankshaft extension:
- Diameter, in.(mm): 2.000 (50.8)
- Length, in.(mm): 3.875 (98.43)
- Keyway width x depth, in.(mm):
  - 1/2 x 1/4 (12.7 x 6.35)
- Maximum recommended sheave diameter, in.(mm):
  - 33.5 (850.9)
- For larger sizes: Contact Factory
Oil Capacity, gallons (L)
- Crankcase: 1-1/4 (4.73)
Weight, pump only on wood shipping skids, pounds (kg):
- “L” model: 395 (179)
- “M” model: 395 (179)
- “H” model: 395 (179)
Standard Materials for Fluid Ends:
- “L” model
  - Cast Ductile Iron
  - Cast Nickel-Aluminum-Bronze
  - Cast 316 Stainless Steel
  - Forged/Plate Carbon Steel
- “M” model
  - Cast Ductile Iron
  - Cast Nickel-Aluminum-Bronze
  - Cast 316 Stainless Steel
  - Forged/Plate Carbon Steel
- “H” model
  - Forged 15-5 Stainless Steel

Performance Chart

PUMP	English Units					50 RPM		150 RPM		200 RPM		250 RPM		350 RPM		465 RPM
	Plunger Dia. In.	Plunger Area Sq. In.	BPD per RPM	GPM per RPM	Max. Press. PSI	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM	BPD	GPM
32T-2L (T225LS)	2	3.1416	3.1474	0.0918	1146	158	4.6	473	13.8	630	18.4	787	22.9	1102	32.1	1464	42.7
	1.875	2.7612	2.7663	0.0807	1304	139	4	415	12.1	554	16.1	692	20.2	969	28.2	1287	37.5
	1.75	2.4053	2.4097	0.0703	1497	121	3.5	362	10.5	482	14.1	603	17.6	844	24.6	1121	32.7
	1.625	2.0739	2.0778	0.0606	1736	104	3	312	9.1	416	12.1	520	15.2	728	21.2	967	28.2
	1.5	1.7671	1.7704	0.0516	2037	89	2.6	266	7.7	355	10.3	443	12.9	620	18.1	824	24
32T-2M (T225M)	1.75	2.4053	2.4097	0.0703	1497	121	3.5	362	10.5	482	14.1	603	17.6	844	24.6	1121	32.7
	1.625	2.0739	2.0778	0.0606	1736	104	3	312	9.1	416	12.1	520	15.2	728	21.2	967	28.2
	1.5	1.7671	1.7704	0.0516	2037	89	2.6	266	7.7	355	10.3	443	12.9	620	18.1	824	24
	1.375	1.4849	1.4876	0.0434	2424	75	2.2	224	6.5	298	8.7	372	10.8	521	15.2	692	20.2
	1.25	1.2272	1.2295	0.0359	2565	62	1.8	185	5.4	246	7.2	308	9	431	12.6	572	16.7
	1.125	0.994	0.9959	0.029	2565	50	1.5	150	4.4	200	5.8	249	7.3	349	10.2	464	13.5
32T-2H (T225H)	1	0.7854	0.7869	0.0229	4584	40	1.1	119	3.4	158	4.6	197	5.7	276	8	366	10.7
	0.875	0.6013	0.6024	0.0176	4600	31	0.9	91	2.6	121	3.5	151	4.4	211	6.1	281	8.2
	0.75	0.4418	0.4426	0.0129	4600	23	0.6	67	1.9	89	2.6	111	3.2	155	4.5	206	6
	Brake Horsepower required					3.4		10.2		13.6		17		24		32

PUMP	Metric Units					50 RPM		150 RPM		200 RPM		250 RPM		350 RPM		465 RPM
	Plunger Dia. mm	Plunger Area cm2	M3/Hr per RPM	L/Sec. per RPM	Max. Press. kPa	M3/Hr	L/Sec.	M3/Hr	L/Sec.	M3/Hr	L/Sec.	M3/Hr	L/Sec.	M3/Hr	L/Sec.	M3/Hr	L/Sec.
32T-2L (T225LS)	51	20.268	0.0208	0.0058	7901	1.04	0.29	3.13	0.87	4.17	1.16	5.21	1.45	7.3	2.03	9.69	2.69
	48	17.814	0.0183	0.0051	8989	0.92	0.25	2.75	0.76	3.66	1.02	4.58	1.27	6.41	1.78	8.52	2.37
	44	15.518	0.016	0.0044	10319	0.8	0.22	2.39	0.67	3.19	0.89	3.99	1.11	5.59	1.55	7.42	2.06
	41	13.38	0.0138	0.0038	11968	0.69	0.19	2.06	0.57	2.75	0.76	3.44	0.96	4.82	1.34	6.4	1.78
	38	11.401	0.0117	0.0033	14046	0.59	0.16	1.76	0.49	2.35	0.65	2.93	0.81	4.1	1.14	5.45	1.51
32T-2M (T225M)	44	15.518	0.016	0.0044	10319	0.8	0.22	2.39	0.67	3.19	0.89	3.99	1.11	5.59	1.55	7.42	2.06
	41	13.38	0.0138	0.0038	11968	0.69	0.19	2.06	0.57	2.75	0.76	3.44	0.96	4.82	1.34	6.4	1.78
	38	11.401	0.0117	0.0033	14046	0.59	0.16	1.76	0.49	2.35	0.65	2.93	0.81	4.1	1.14	5.45	1.51
	35	9.58	0.0099	0.0027	16716	0.49	0.14	1.48	0.41	1.97	0.55	2.46	0.68	3.45	0.96	4.58	1.27
	32	7.917	0.0081	0.0023	17685	0.41	0.11	1.22	0.34	1.63	0.45	2.04	0.57	2.85	0.79	3.79	1.05
	29	6.413	0.0066	0.0018	17685	0.33	0.09	0.99	0.27	1.32	0.37	1.65	0.46	2.31	0.64	3.07	0.85
32T-2H (T225H)	25	5.067	0.0052	0.0014	31603	0.26	0.07	0.78	0.22	1.04	0.29	1.3	0.36	1.82	0.51	2.42	0.67
	22	3.879	0.004	0.0011	31716	0.2	0.06	0.6	0.17	0.8	0.22	1	0.28	1.4	0.39	1.86	0.52
	19	2.85	0.0029	0.0008	31716	0.15	0.04	0.44	0.12	0.59	0.16	0.73	0.2	1.03	0.29	1.36	0.38
	Kilowatts Required					2.5		7.6		10.2		12.7		18		24

Volumetric Rate is based on 100% Volumetric Efficiency. Brake Horsepower/Kilowatts Required is based on 90% Mechanical Efficiency.

Wheatley T225 (32T-2) Triplex Plunger Pump

Want to make this drawing interactive?

THE PARTS YOU NEED THE SERVICE YOU DESERVE

Specifications

Performance Chart

For operation below 75 RPM, an auxiliary lubrication system is required.
